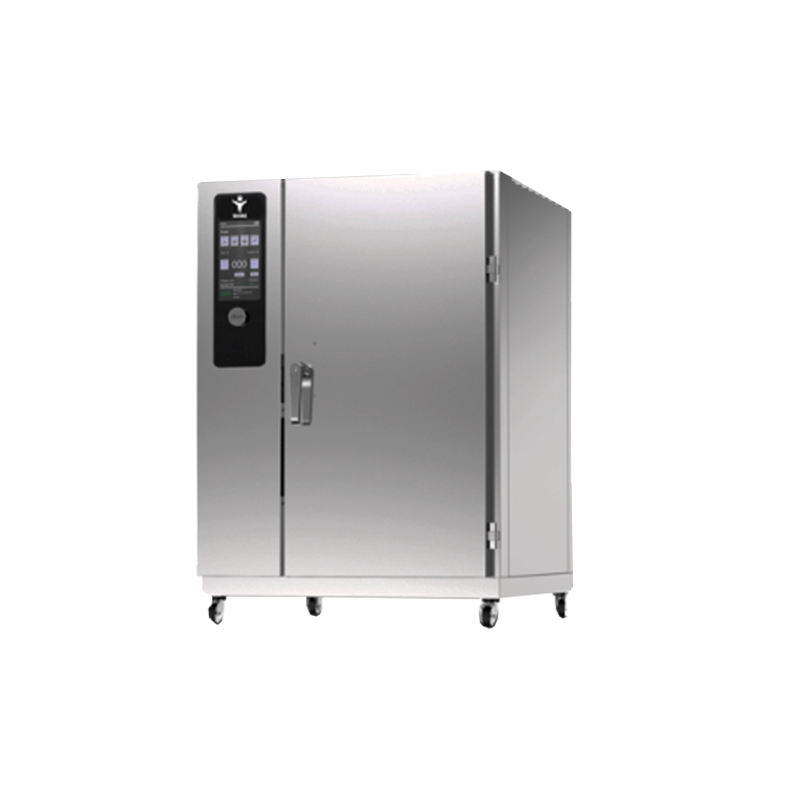

SHC-230 Hypochlorous Acid Generator - Generate Hypochlorous Acid (HOCL) up to 500 ppm
SHC-230 Hypochlorous Acid Generator is using the self-developed non-diaphragm electrochemical technology, the safe, effective, non-toxic, non-irritating and environmentally friendly hypochlorous acid disinfection water in the range of 3-500ppm can be quickly and efficiently prepared in 1-3 seconds after starting the machine.
Model No.: SHC-230
Machine Size: 330*180*410mm
Water Production: 230L/hour
Concentration PPM: 3-500ppm
PH Concentration: 5.0-6.5
ORP: >800mv
Hypochlorous Acid Generator SHC-230

Advantage:
* Safe:
In completely compliance with the national standards from <Hygienic requirements for disinfectants with chlorine>, <Hygienic requirements for acidic electrolyed water generator>.
* Efficient:
1) Sterilization rate 99.99%;
2) Sterilization time: within 1minute.
* Environmently Friendly:
1) The pH value is between 5-6.5, it is slightly acidic, colorless, non-irritating, non-toxic, safe, harmless and no harm to the skin;
2) It ends with water.
*Convenient and Economic:
Open and use, cleaning and disinfection two-in-one
*Multiple Functions:
Sterilization, preservation, deodorization, pesticide residue removal, biofilm removal
Electrolytically generated hypochlorous acid eliminates common microbial contaminants:

Escherichia coli (O157)
Staphylococcus aureus
Candida albicans
Adenovirus
Caliciviruses (including Norovirus)
Campylobacter jejuni
Enterovirus (including polioviruses, coxsakieviruses, and echoviruses)
Helicobacter pylori
Hepatitis A
Legionella pneumophilia
Mycobacterium avium
Salmonella enterica
Shigella sonnei
Scope of Application:

Product application video
1. Kitchen: Kitchenware, Cookware, Vegetables and Fruits etc.
2. Object surfaces : door handles, window handles, countertops, tables and chairs, handrails, faucets, outer walls of tea buckets,
elevator handrails, elevator buttons, secondary water supply equipment and facilities, etc.
3. Air disinfection: disinfection and deodorization of indoor and outside air.
4. Cleaning tools: towels, rags, mops, buckets, brushes, etc.
5. Personal hygiene: hands, skin and mucous membranes.
6. Pet Supplies Disinfection: pet toys, pet cages, etc.
7. toilet disinfection:toilet, sewer, etc.
Products Parameter:
| Concentration PPM | 3-500ppm |
| Flow | 230L/hour |
| Available chlorine concentration | 3-500mg/L |
| ORP | >800mv |
| Power requirements | AC220V 50Hz |
| Power | 455W |
| Current setting value | 0.1-2.2A |
| Electrolyte | dilute HCL |
| Water inlet pressure | 0.15Mpa---0.25Mpa |
| Electrolyzer life | 6000 hours |
| Size | 330*180*410mm |
Available chlorine concentration testing video
pH value testing video
